Specification
Parameter
Nominal diameter : 12″ Mechanical Factor : QES 1,42
DC Resistance : RE 4Ω Compliance : CMS 0,04
BL Factor : BL 25,03 Equivalent Cas Air Load : VAS 14,59
Effective Moving Mass : MMS 362,84 Resonance Frequency : FS 36,15
Total Factor : QTS 0,6 Effettive Pistom Area : SD 0,05
Electrical Factor : QMS 4,12 η(Eta Zero) : η0 0,24
General Specifications
Nominal diameter : 12″ Winding Material : 4layers of round aluminum wire
Nominal Impedance : 4Ω /4Ω
AES power Handling AES : 2000W Former Material: Aluminum
Continuous program power : 4000W Winding Depth : 60mm
Sensitivity 1w/1m : 90dB Xmax : +-22.5mm

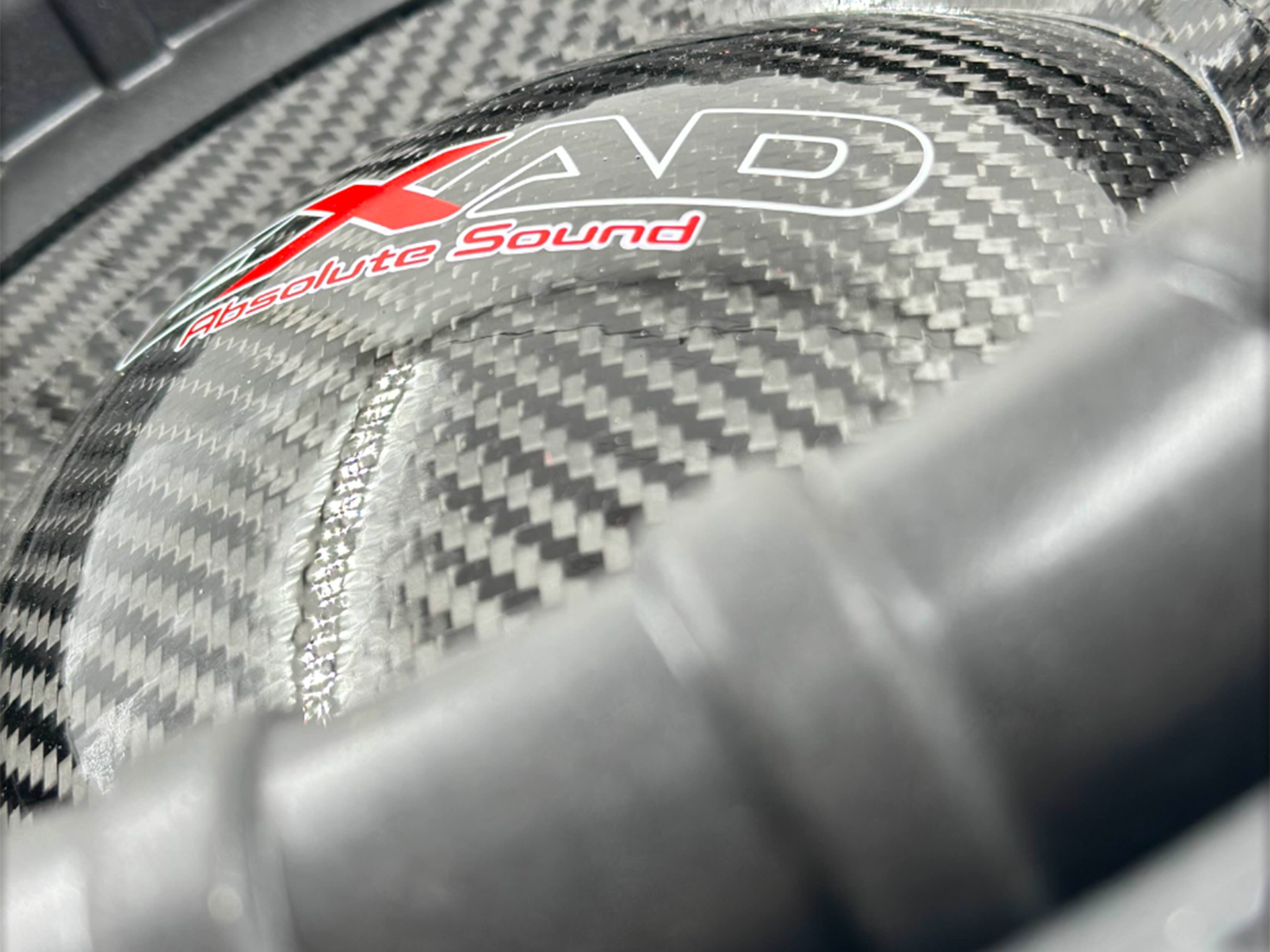

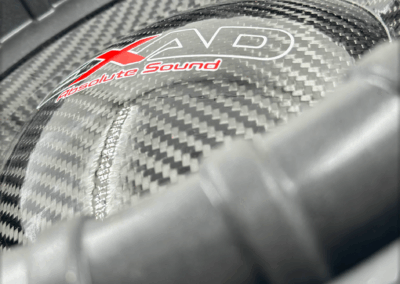

Frequency Range : 35HZ-500HZ Surround material : Carbon fiber basins
Voice Coil Diameter: 100mm Surround Design ： U- shaped
Magnet： 220X127X25 Tri-magnet ferrite
